Description:
Our extensive range of Sequence Controllers, Sequencer PCB’s and Reverse Jet Stations are all designed and built here in the UK at our own manufacturing facility. Our products are tried and tested throughout the world and are available in analogue or digital versions to suit many situations and applications. We carry stocks of all popular units at our central warehouse and special orders are always available from our production workshop. Please select a product PDF below for full information and specifications. All PDFs are in English unless indicated.
View the products below:
Key Features:
The KX range of dust extraction equipment is the most recent addition to our product range and we believe will set the standard by which all other systems are judged. Utilising the very latest in Micro-Processor technology.
- Advanced micro-processor control
- Modular system design
- Onboard eprom memory
- Easy to use 5 button control
- High resolution lcd display
- Separate cleaning cycle for system fan stop
- 4-20 milliamp output
- Remote control
- Real time system monitoring
- Specially encoded serial bus
- Damper handling
- Built-in output amplifiers and power supply
- High/low pressure alarms
- Empowered/healthy signal
- View product datasheets for more info:

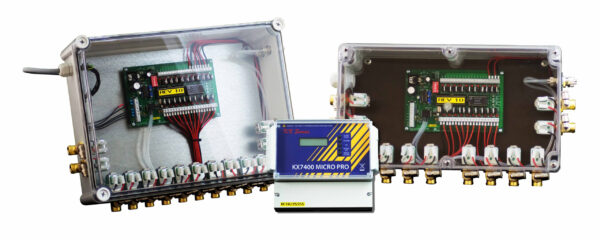

KX7401 – V5
The KX7401-V5 Series Master Controller offers a unique range of features which not only offer greater reliability, but also, unparalleled ease of use, and a high level os system flexibility and tamper-proof system operation.
Warning: Trying to access array offset on value of type int in /var/www/wp-content/plugins/wc-product-table-pro/pro/functions.php on line 716
Image | Description | Controller Type | Input Voltage | Output Voltage | Controller Ways | Quantity | Request |
|---|---|---|---|---|---|---|---|
 |
KX74001 - G10 - V5PDF: Data Sheet
|
Master + Drone |
24 VDC |
24 VDC |
200 Way with KX7403-D |
||
|
KX74001 - G15 - V5PDF: Data Sheet
|
Master + Drone |
110 - 240 VAC |
24 VDC |
200 Way with KX7403-D |
||
|
KX7403-D
|
Drone |
24 VDC |
24 VDC |
20 Way without DP Control |
||
|
KX7403-DDP
|
Drone |
24 VDC |
24 VDC |
20 Way with DP Control |

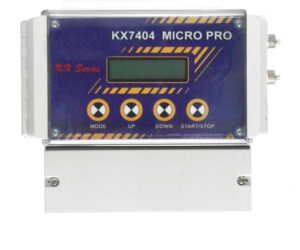

KX7404
The KX7404 Valve Controller is a fully selfcontained solution to multi-valve control incorporating differential pressure sensing. This unit offers the latest in Microprocessor technology in a compact enclosure, affording unparalleled levels of user friendliness, system flexibility and tamper-proof operation.
Warning: Trying to access array offset on value of type int in /var/www/wp-content/plugins/wc-product-table-pro/pro/functions.php on line 716
Image | Description | Controller Type | Input Voltage | Output Voltage | Controller Ways | Quantity | Request |
|---|---|---|---|---|---|---|---|
 |
KX7404-G15PDF: Data Sheet
|
Master |
110 - 240 VAC |
24 VDC |
4 Way Valve Controller |
||
|
3WKX74041RJDP - Jet Station
|
Master |
110 - 240 VAC |
24 VDC |
Up to 6 Way |

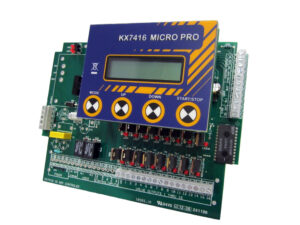

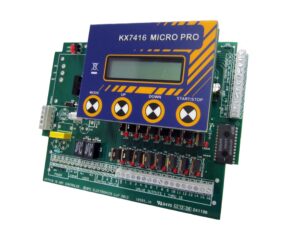

KX74161
The KX74161 Valve Controller is a fully self-contained solution to multi-valve control incorporating differential pressure sensing. This unit offers the latest in Microprocessor technology in a compact enclosure, affording unparalleled levels of user friendliness, system flexibility and tamper-poof operation.
Warning: Trying to access array offset on value of type int in /var/www/wp-content/plugins/wc-product-table-pro/pro/functions.php on line 716
Image | Description | Controller Type | Input Voltage | Output Voltage | Controller Ways | Quantity | Request |
|---|---|---|---|---|---|---|---|
 |
KX74161-G10PDF: Data Sheet
|
Master |
24 VDC |
24 VDC |
Up to 16 Way |
||
|
KX74161-G15PDF: Data Sheet
|
Master |
110 - 240 VAC |
24 VDC |
Up to 16 Way |
||
 |
KX74161-G4PDF: Data Sheet
|
Master |
110 - 240 VAC |
110 VAC |
Up to 16 Way |
||
|
KX74161-G31PDF: Data Sheet
|
Master |
110 - 240 VAC |
24 VAC |
Up to 16 Way |

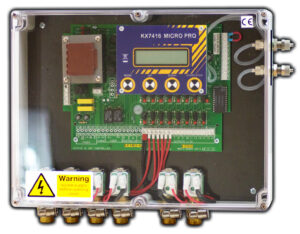

KX74162
The KX74162 Valve Controller is a fully selfcontained solution to multi-valve control incorporating differential pressure sensing. This unit offers the latest in Microprocessor technology in a compact enclosure, affording unparalleled levels of user friendliness, system flexibility and tamper-proof operation.
Warning: Trying to access array offset on value of type int in /var/www/wp-content/plugins/wc-product-table-pro/pro/functions.php on line 716
Image | Description | Controller Type | Input Voltage | Output Voltage | Controller Ways | Quantity | Request |
|---|---|---|---|---|---|---|---|
 |
KX74162-G10PDF: Data Sheet
|
Master |
24 VDC |
24 VDC |
Up to 16 Way |
||
|
KX74162-G15PDF: Data Sheet
|
Master |
110 - 240 VAC |
24 VDC |
Up to 16 Way |
||
|
KX74162-G4PDF: Data Sheet
|
Master |
110 - 240 VAC |
110 VAC |
Up to 16 Way |
||
|
KX74162-G31PDF: Data Sheet
|
Master |
110 - 240 VAC |
24 VAC |
Up to 16 Way |

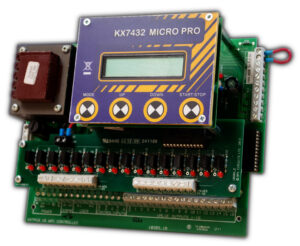

KX74322
The KX74322 Valve Controller is a fully selfcontained solution to multi-valve control incorporating differential pressure sensing. This unit offers the latest in Microprocessor technology in a compact enclosure, affording unparalleled levels of user friendliness, system flexibility and tamper-proof operation.
Warning: Trying to access array offset on value of type int in /var/www/wp-content/plugins/wc-product-table-pro/pro/functions.php on line 716
Image | Description | Controller Type | Input Voltage | Output Voltage | Controller Ways | Quantity | Request |
|---|---|---|---|---|---|---|---|
 |
KX74322-G10PDF: Data Sheet
|
Master |
24 VDC |
24 VDC |
Up to 32 Way |
||
|
KX74322-G15PDF: Data Sheet
|
Master |
110 - 240 VAC |
24 VDC |
Up to 32 Way |
||
|
KX74322-G4PDF: Data Sheet
|
Master |
110 - 240 VAC |
110 VAC |
Up to 32 Way |
||
|
KX74322-G31PDF: Data Sheet
|
Master |
110 - 240 VAC |
24 VAC |
Up to 32 Way |

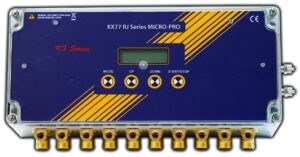

KX7700 AC
The KX7700ac RJ DP Valve Controller offers a fully self contained solution to multi valve control, incorporating on board solenoid valves and differential pressure sensing. This unit incorporates the latest in Microprocessor technology in a compact enclosure, affording unparalleled levels of user friendliness, system flexibility and tamper-proof operation.
Warning: Trying to access array offset on value of type int in /var/www/wp-content/plugins/wc-product-table-pro/pro/functions.php on line 716
Image | Description | Controller Type | Input Voltage | Output Voltage | Controller Ways | Quantity | Request |
|---|---|---|---|---|---|---|---|
 |
KX7700 - ACPDF: Data Sheet
|
Master + Drone |
110 - 240 VAC |
24 VDC |
180 Way with KX7700-DC |
||
|
KX7700 - DC
|
Drone |
24 VDC |
24 VDC |
Up to 12 Way |
-
